Kenwood DRV-A501W + KCA-R100

Kenwood DRV-A501W + KCA-R100

$379.00 $369.00 Sale

High Definition Recording & Wireless Link
 Camera is equipped with 3.7 Megapixel* Wide Quad Hi-Vision provides easy data transfer to your smartphone through Wireless Link.
  • DRV-A501W

  • Dashboard Camera with Wireless Link

    DRV-A501W + KCA-R100 (rear camera)
    • 3.7 Megapixel Recording
    • 3.0" LCD Display
    • Touch Panel Control
    • HDR
    • Wireless Link
    • Built-in GPS & G-Sensor
    • Parking Mode Recording
    • 16GB microSD Included
    • Quick Release
    Features Icons
*Parking Mode Recording requires optional CA-DR1030 Hardwaire Kit
3.7 Megapixel Recording
3.7 Megapixel Recording provides High Resolution Recording
3.7 Megapixel High Definition recording captures clear video even while driving.
Wide Quad-HD
DRV-A501W records with Full-HD (1920 x 1080) when KCA-R100 rear camera is connected.

DR (High Dynamic Range) for Backlighting

Easily records clear images in dark or well lit settings without underexposing or overexposing the image.

Without HDR/WDR
Without HDR

With HDR/WDR
With HDR
Polarized Filter Included
Simply attach PL filter to front of lens to reduce windscreen glare/reflection.
The filter has a rotating bezel, so that you can setup reflection free lens exactly how you need in your vehicle.


without PL Filter(without PL Filter)

with PL Filter
(with PL Filter)
Supports micro SDXC/SDHC
  • microSDXC/SDHC card 8GB to 256GB supported.
  • SD Card Recorded File Capacity
  • 8GB Micro SD = 47 mins (1 minute x 47 recordings)
  • 16GB Micro SD = 94 mins (1 minute x 94 recordings)
  • 32GB Micro SD = 141 mins (1 minute x 141 recordings)
  • 64GB Micro SD = 376 mins (1 minute x 376 recordings)
  • 128GB Micro SD = 752 mins (1 minute x 752 recordings)
  • 256GB Micro SD = 1504 mins (1 minute x 1504 recordings)
  • *Based on default recording settings.
12V & 24V Compatible

Camera works with both 12V and 24V applications.

Touch Panel Control
3.0" LCD Display with Touch Panel Control
Large touch display provides easy access to checking recorded videos and changing settings.

Wireless Link
Access Your Dash Cam Data Wirelessly
KENWOOD Dash Cam Manager App Icon
Wireless Link App
Easily share recorded videos directly to social media using the KENWOOD DASH CAM MANAGER smartphone application (iOS 9.0+ or Android 5.0.2+)
Social media recorded video uploading is not available in all countries.
DashCam Image Smartphone Image
Instruction Menus
Instruction Menus

GPS Information
GPS Information

Main Screen
Main Screen

Video Playback
Video Playback

KENWOOD VIDEO PLAYER

The KENWOOD VIDEO PLAYER is a desktop software for displaying video recorded with this device. Simply download the installer from https://www.kenwood.com/cs/ce/, then install according to the on-screen instructions.

Main Screen
Main Screen

Share your videos directly to social media.
Share your videos directly to social media.
PC Requirements
OS: Microsoft Windows 10, 8.1, 7*
*Windows 7 Service Pack 1 & Microsoft Visual C++must be installed.
OS: Apple Mac OS X 10.11 (El Capitan) or later.
Enhanced Vehicle Monitoring & Protection

G-sensor & Built-in GPS

The DRV-A501W is equipped with a G-Sensor designed to detect a collision, and GPS that records speed, latitude, and longitude.

G-sensor
Parking Mode Recording


Parking Mode Recording

When the vehicle is parked and turned off, parking mode becomes active.  If the vehicle is subject to a collision or other physical impact, the cameras power on and automatically records 30 seconds of video.
PowerCable
*Parking Mode Recording requires opptional hardwaire kit: CA-DR1030

Super Capacitor

If power is lost, this prevents the recorded video file from being corrupted, as it provides enough power to allow the video file to close properly.

SuperCapacitor
Quick Release

Magnetic Mount

Quickly place and remove the dash cam.
No cable to connect or disconnect from the dash cam.

Magnetic Mount
2 Mounts Included
3M Tape Style
3M Tape Style

Suction Cup Style
Suction Cup Style

 Rear View Camera


Optional Rear View Camera
KCA-R100

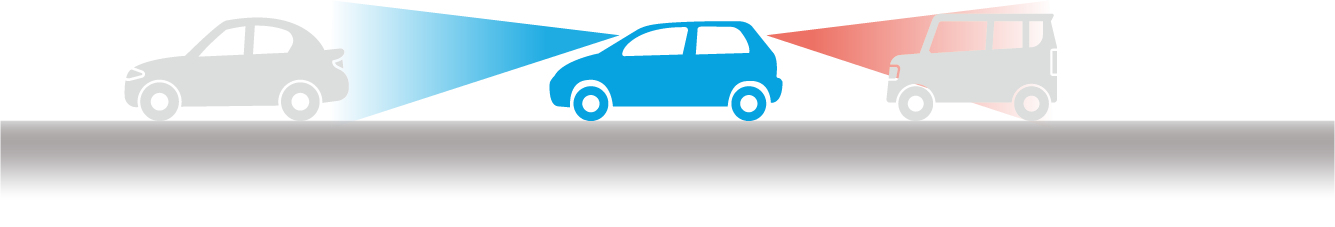

Front & Rear View Recording

Connect KCA-R100 to DRV-A501W to record in front and behind of your vehicle, all at the same time.  The rear dash cam includes a 8m cable that connects to the front dash cam, allowing it to easily be mounted to the rear windshield or anywhere else in the vehicle where you would like to record.    When in Dual Camera Recording Mode, both cameras maximum recording resolution is 2.0 Megapixel (Full HD).  Rear cam must be turned off in menu setting to enable front cam 3.7 Megapixel recording.

Front & Rear View Recording

8m Rear Camera Cable

motorhome

8m power & video cable enable you to install the rear camera inside your car, truck, or RV.

Do not install the camera outside of your vehicle.

Adjustable Mounting Holder


Adjustable Rear Camera mounting holder enables viewing position change by up to 180 degrees .
Could use for rear camera for view inside vehicle.
